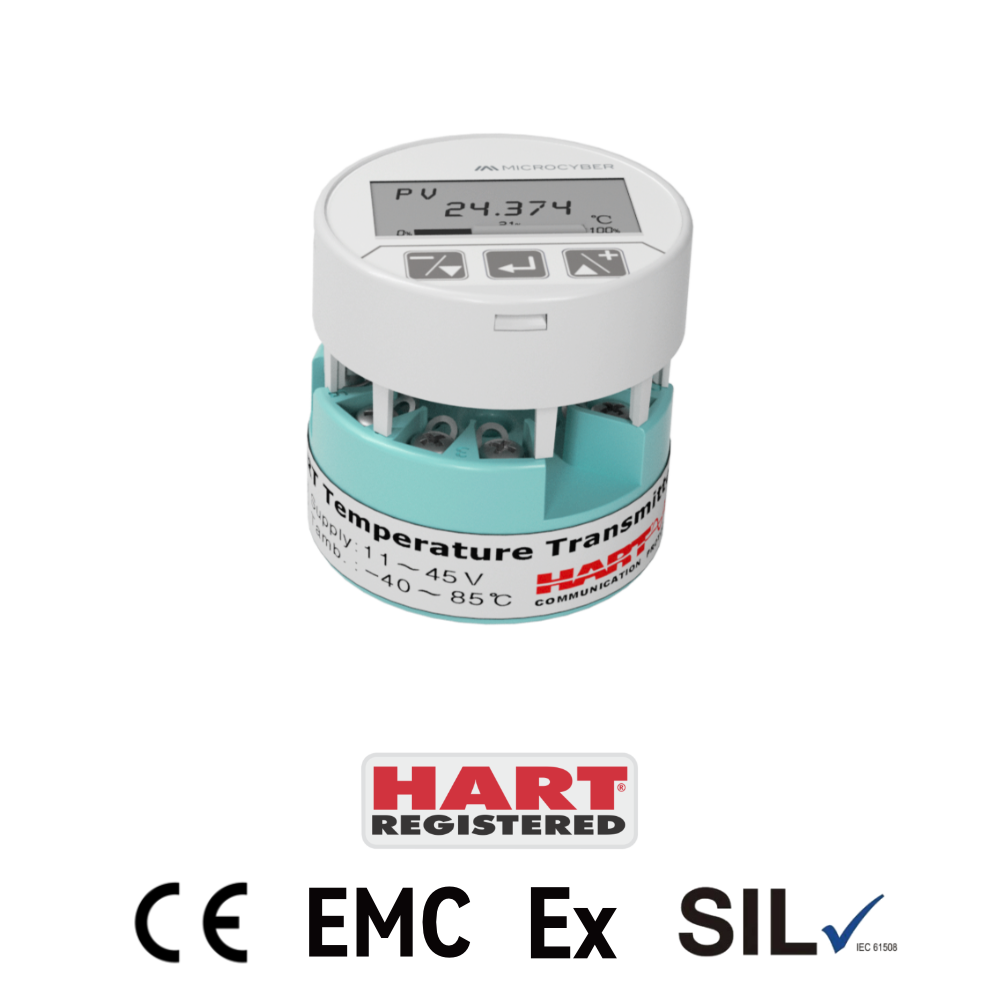

The NCS-TT306 series HART intelligent temperature transmitter is a dual-channel temperature transmitter module with high reliability, high long-term stability, high measurement accuracy, and low temperature drift. It supports 4~20mA+HART protocol (supports BURST function), LCD display, and dual-channel redundancy function.It has been certified by multiple international certifications such as explosion-proof, CE, EMC, SIL2, etc.It can be widely used in petroleum, chemical, electric power,metallurgy and other industries.
NCS-TT306 Series HART Temperature Transmitter：
1. Certified by CE, Ex ia, EMC, SIL2 and HART
2. Dual channel, supporting multiple thermistor and thermocouple sensors, and supporting redundant hot backup of sensors
3. Supports 2/3/4-wire when connecting thermal resistors
4. The cold end compensation accuracy of the thermocouple can reach ± 0.15 ℃ (externally connected Pt100)
5. High precision (Pt100: ± 0.1 ℃), low-temperature drift (Pt100: ± 0.003 ℃/℃)

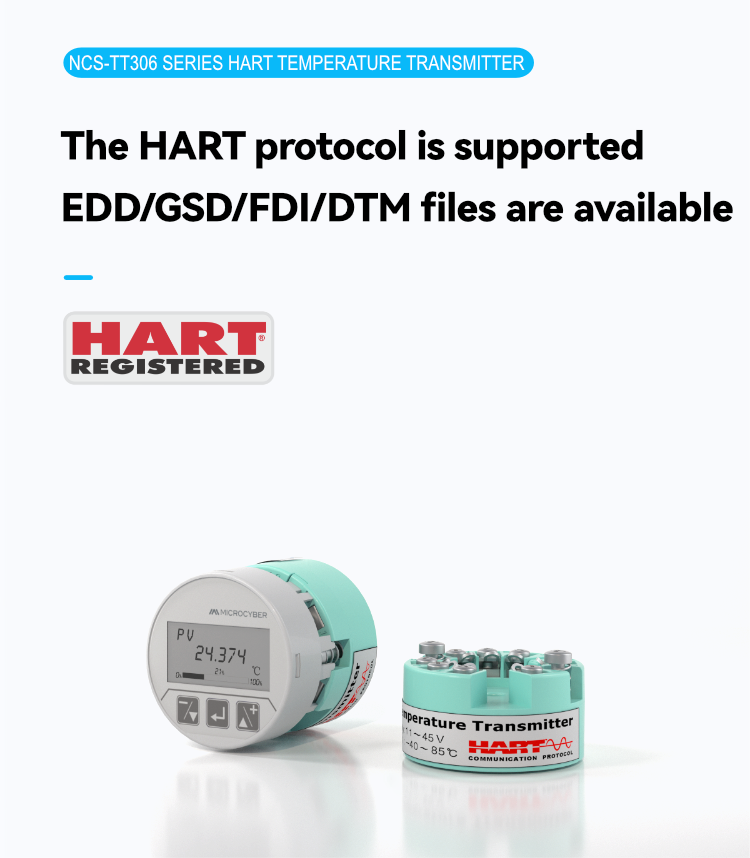

6. EDD/SSD/FDI/DTM are provided, which are compatible with various DCS systems
Product Description

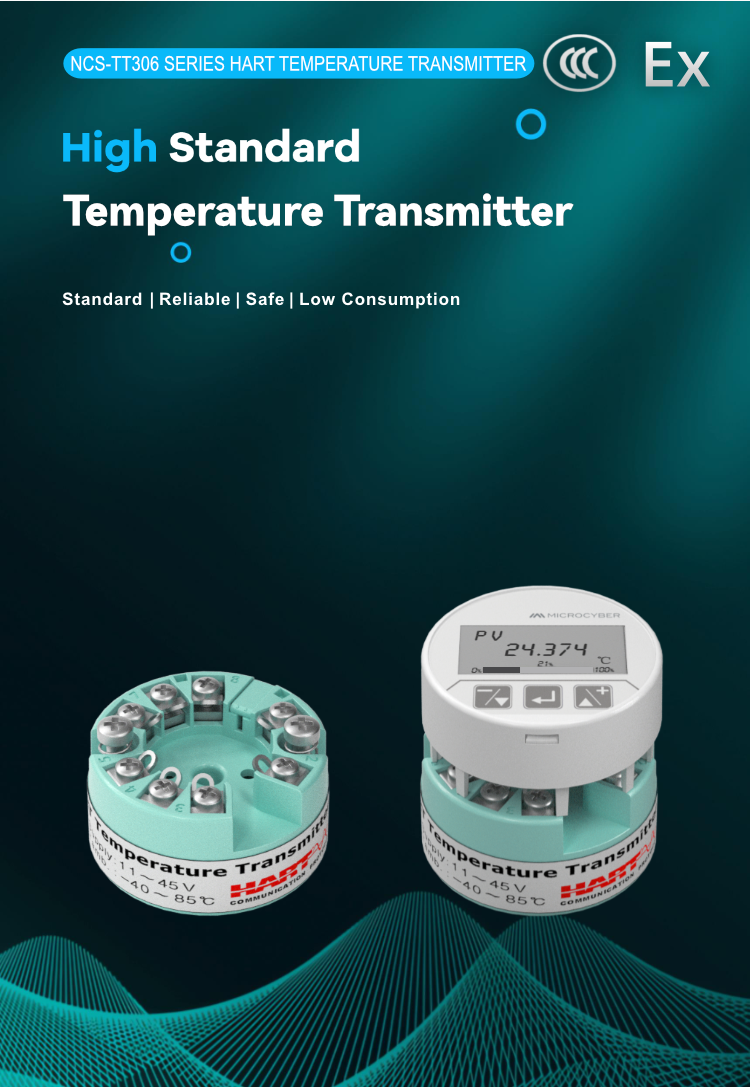

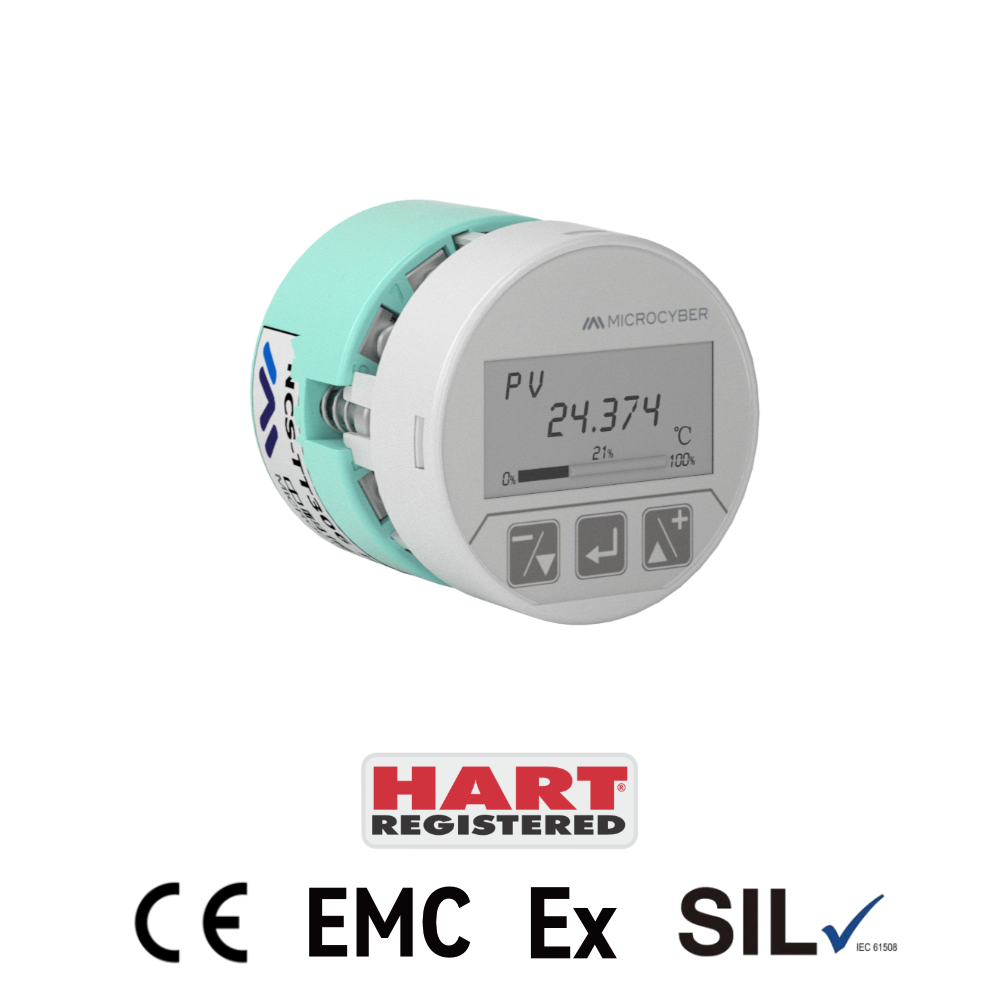

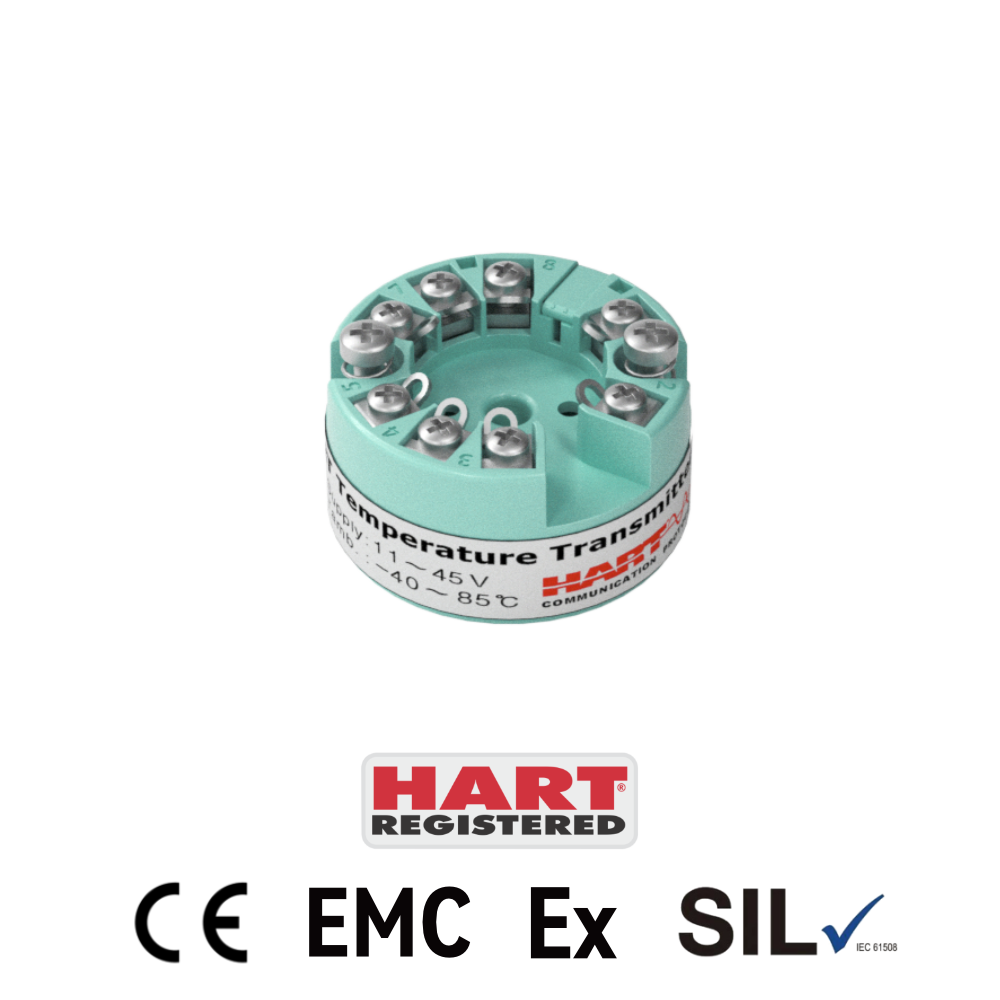

NCS-TT306 Series HART Temperature Transmitter： is a high-precision, low-temperature drift, and high-reliability product, including head-mounted NCS-TT306H and rail-mounted NCS-TT306H-R. It is indispensable in process control. Field equipment. The device integrates a wealth of functional modules, which can not only implement general detection functions, but also implement complex control strategies.
NCS-TT306 Series HART Temperature Transmitter size shown:
Size（Unit：mm）
NCS-TT306 Series HART Temperature Transmitter wiring shown:
NCS-TT306H adopts digital technology and can be applied to a variety of thermal resistance and thermocouple sensors. It has a wide range and a simple interface between the field and the control room, and can greatly reduce installation, operation and maintenance costs.
NCS-TT306H series temperature transmitter supports 4-20mA+HART protocol and LCD display, and can be widely used in petroleum, chemical, electric power, metallurgy and other industries.
NCS-TT306 Series HART Temperature Transmitter technical indicators of thermal power resistance:
RTD Accuracy (25℃)
Signal type | Sensor measuring range (℃) | Accuracy (25℃) | Temperature drift (/℃) |
resistance signal | 0~500Ω | ±0.04Ω | ±0.001Ω |
0~2000Ω | ±0.35Ω | ±0.015Ω | |
0~4000Ω | ±0.35Ω | ±0.015Ω | |
0~8000Ω | ±0.7Ω | ±0.03Ω | |
Cu50 | -50 ~ 150 ℃ | ±0.10℃ | ±0.005℃ |
Cu50_GOST | -180 ~ 200 ℃ | ±0.10℃ | ±0.005℃ |
Cu100 | -50 ~ 150 ℃ | ±0.10℃ | ±0.003℃ |
Cu100_GOST | -180 ~ 200 ℃ | ±0.10℃ | ±0.003℃ |
Pt50_GOST | -200 ~ 850℃ | ±0.10℃ | ±0.005℃ |
Pt100 | -200 ~ 850℃ | ±0.10℃ | ±0.003℃ |
Pt100_GOST | -200 ~ 850℃ | ±0.10℃ | ±0.003℃ |
Pt200 | -200 ~ 850℃ | ±0.10℃ | ±0.005℃ |
Pt500 | -200 ~ 850℃ | ±0.10℃ | ±0.005℃ |
Pt1000 | -200 ~ 850℃ | ±0.10℃ | ±0.005℃ |
Ni50 | -60 ~ 180℃ | ±0.10℃ | ±0.004℃ |
Ni100 | -60 ~ 180℃ | ±0.10℃ | ±0.002℃ |
Ni120 | -60 ~ 180℃ | ±0.10℃ | ±0.002℃ |
Ni1000 | -60 ~ 180℃ | ±0.10℃ | ±0.002℃ |
NCS-TT306 Series HART Temperature Transmitter thermocouple technical indicators
Thermal Couple Accuracy (25℃)
Signal type | Sensor measuring range (℃) | Accuracy (25℃) | Temperature drift (/℃) |
millivolt | -100 ~ +100mV | ±0.025mV | ±0.0015 mV |
B | 500 ~ 1810℃ | ±0.77℃ | ±0.050℃ |
E | -200 ~ 1000℃ | ±0.20℃ | ±0.025℃ |
J | -190 ~ 1200℃ | ±0.35℃ | ±0.01℃ |
K | -200 ~ 1372℃ | ±0.40℃ | ±0.025℃ |
N | -190 ~ 1300℃ | ±0.50℃ | ±0.015℃ |
R | 0 ~ 1768℃ | ±0.75℃ | ±0.023℃ |
S | 0 ~ 1768℃ | ±0.70℃ | ±0.023℃ |
T | -200 ~ 400℃ | ±0.35℃ | ±0.015℃ |
L_GOST | -200 ~ 800℃ | ±0.50℃ | ±0.0375℃ |
A（W5ReW20Re） | 0 ~ 800℃ | ±1.45℃ | ±0.06℃ |
C（W5ReW26Re） | 0 ~ 800℃ | ±1.15℃ | ±0.09℃ |
D（W3ReW25Re） | 0 ~ 800℃ | ±1.55℃ | ±0.07℃ |
NiCrAuFe | -273 ~ 7℃ | ±0.65℃ | ±0.020℃ |
CuAuFe | -270 ~ -196℃ | ±0.85℃ | ±0.035℃ |
NCS-TT306 Series HART Temperature Transmitter basic parameter:
Bus Interface | 4～20mA (supports current reversal) + HART 7 (supports BURST mode) |
Bus Power | 11.0 ～ 45 VDC |
Wiring Method | 2, 3, 4 wire |
Input Signal | Resistance signal: 0～500Ω、0～2000Ω、0～4000Ω Thermal resistance sensor: Cu50、Cu50_GOST、Cu100、Cu100_GOST、 Pt50_GOST、Pt100、Pt100_GOST、Pt200、Pt500、Pt1000、Ni50、Ni100、 Ni120、Ni1000 mVsignal: -100mV～100mV； Thermocouple sensor: B、E、J、K、N、R、S、T、L_GOST、 A（W5ReW20Re）、C（W5ReW26Re）、D（W3ReW25Re）、 NiCrAuFe、CuAuFe； |
Protocol Version | HART 7 |
Number of Channels | dual channel |
Input Impedance | ≧10MΩ |
Electrical Isolation | 2kVAC/50VAC |
Voltage Effect | ±0.005%/V |
LCD Display | Head mounted: supports LCD display or no display (optional) Rail installation: no display |
Key Operation | Support button setting parameters |
Working Temperature | -40（-55）℃～85℃ （with display） -20 ～ 70℃ （no display） |
Humidity Range | (5～95)%RH |
Storage Temperature | -40 ～ 85℃ |
Start Time | ≤10 seconds |
Update Time | 0.8 ～ 1.3s |
Damping Adjustment | Time constant 0~32 seconds |
Alarm Signal | Saturation current lower limit: [3.75-4.0)mA, default value 3.8mA Upper limit of saturation current: (20-20.8]mA, default value 20.5mA Alarm current lower limit: [3.5-3.7]mA, default value 3.6mA Upper limit of alarm current: [21.0-23.0]mA, default value 21.75mA |
Current Accuracy | 0.05% |
Voltage Effect | ±0.005%/V |
Terminal Torque | 0.4Nm |
Wire Specifications | 1.5mm2 |
Anti-vibration Specifications | 2-25Hz：±1.6mm；25-100Hz：±4g |
Protection Level | Terminal IP00, module housing IP20, rail housing IP20 |
Weight | Module ≦ 75g; graphics card: ≦50g; guide rail ≦ 100g |
