Smart Temperature Transmitters

Microcyber’s Smart Temperature Transmitters are engineered to deliver superior accuracy and stability for critical process control. Unlike basic analog transmitters, our smart series serves as a versatile interface between your temperature sensors and the control network.

Why Choose Microcyber Temperature Transmitters?

Universal Protocol Support: We offer certified solutions for Foundation Fieldbus (H1), Profibus-PA, HART, and WirelessHART.
Universal Input: A single device supports various sensor types, including 2/3/4-wire RTDs (Pt100, Cu50) and Thermocouples (B, E, J, K, N, R, S, T), reducing your inventory complexity.
Flexible Installation: Available in Head Mount (Hockey Puck style) for direct integration into connection heads, or DIN Rail Mount for cabinet installation.

With FCG and PNO certification, our transmitters ensure seamless interoperability with systems like Emerson AMS and Siemens PDM.

NCS-TT108F Rail Mounted Multi-Input FF Temperature Transmitter

Supports RTD, TC, mV, Ω FF protocol compliant
8 channels; 2-wire/3-wire RTD connection supported
FISCO certified; safe operation in hazardous zones

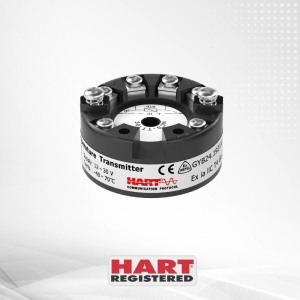

NCS-TT106H Head Mount HART Temperature Transmitter

RTD & thermocouple input to 4-20mA/HART output
Single channel with sensor fault (open/short) detection
Intrinsically safe design for hazardous environments

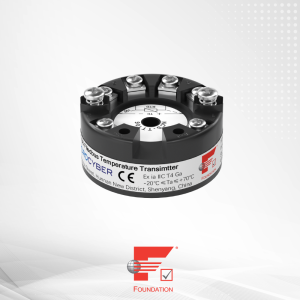

NCS-TT106F Head Mount FF Temperature Transmitter

RTD/TC input; FF protocol communication
Single-channel with open/short-circuit detection
FISCO intrinsically safe for hazardous areas

NCS-TT106P Head Mount PA Temperature Transmitter

RTD/TC input; PROFIBUS PA Profile 3.02 compliant
Single-channel with open/short-circuit detection
FISCO intrinsically safe for hazardous areas

NCS-TT106A Head Mount 4-20mA Temperature Transmitter

RTD/TC input; converts to 4-20mA output
Single-channel; supports 2-wire & 3-wire RTD
High accuracy: Pt100 ±0.1% FS or ±0.2°C

NCS-TT106M Head Mount Modbus Temperature Transmitter

RTD, TC, mV, Ω input; Modbus-RTU via RS485
Measurement accuracy: Pt100 ±0.1°C
Galvanic isolation between input & output

NCS-TT106H-R1 Rail Mounted HART Temperature Transmitter

Converts RTD/TC signals to 4-20mA & HART output.
Single-channel input with open/short detection.
Intrinsically safe for use in hazardous areas.

NCS-TT106F-R1 Rail Mounted FF Temperature Transmitter

Supports RTD/TC inputs via Foundation Fieldbus.
Single-channel input with open/short detection.
FISCO compliant for safe use in hazardous areas.

NCS-TT108FC Rail Mounted Multi-Input FF Temperature Transmitter

Supports RTD, TC, mV, Ω FF protocol compliant
8 channels; 2/3-wire RTD + LCD & local keypad configuration
FISCO certified; safe in hazardous areas

NCS-TT108M Rail Mounted Multi-Input Modbus Temperature Transmitter

Supports RTD, TC, mV, Ω Modbus-RTU protocol compliant
8 channels 2/3-wire RTD connection supported
LCD display & local configuration via keypad

NCS-TT306HH Head Mount HART Temperature Transmitter

Dual input RTD/TC/mV/Ω; 4-20mA & HART output
Fault diagnostics compliant with NE107
Functional safety: SIL2/SIL3 per IEC 61508

NCS-TT105W WirelessHART Temperature Transmitter

Single-channel input, supports 2/3/4-wire RTDs & TCs.
HART 7.6 compliant, >99% data reliability tested.
0-13dBm TX power, wireless range up to 150 meters.

Product Recommendations

NCS-TT106H Head Mount HART Temperature Transmitter

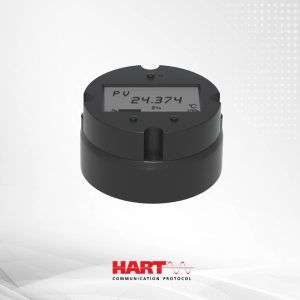

MS0210 Dual-Input HART Temperature Transmitter Module

NCS-TT106F Head Mount FF Temperature Transmitter

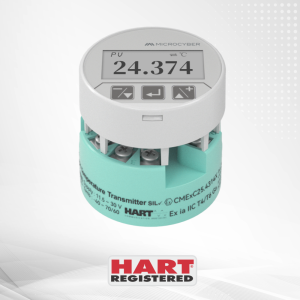

NCS-TT306H1 Head Mount HART Temperature Transmitter
