Real-World Application: NCS-TT108 Fieldbus Temperature Transmitter in Metallurgical Conveyor System

Project Overview

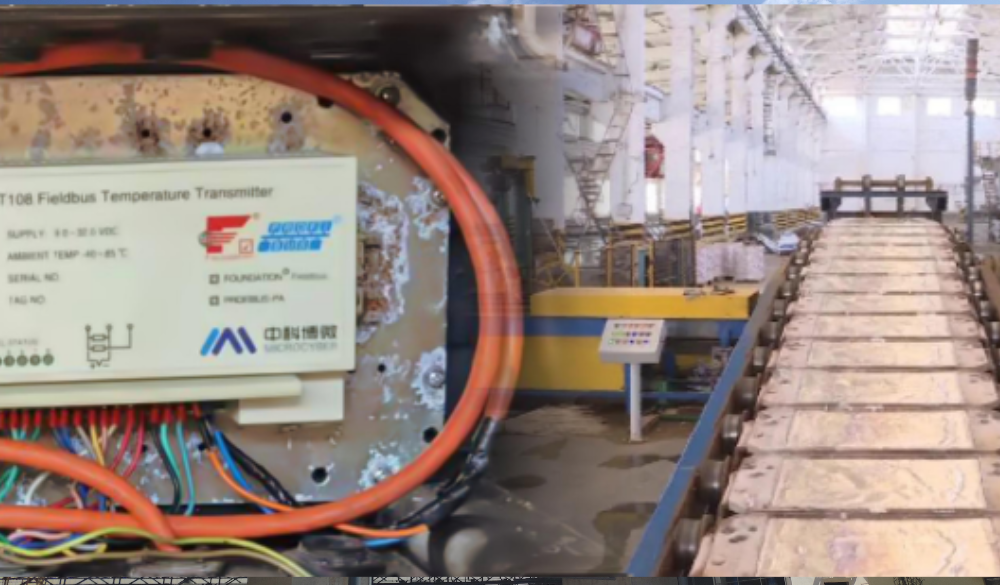

In a large-scale metallurgical facility, Microcyber’s NCS-TT108 Fieldbus Temperature Transmitter was installed to perform multi-point temperature monitoring along a high-temperature material handling conveyor. The device continuously measures temperatures at multiple zones on the conveyor belt system, ensuring process stability, equipment protection, and optimal thermal management during material transport (e.g., hot metal slabs, ore, or sintered products).

Site Conditions and Challenges
The metallurgical environment presents demanding conditions:
– High ambient temperatures near hot material conveyors (often exceeding 100–300 °C locally)
– Dusty, vibrating, and mechanically harsh industrial setting with heavy machinery and conveyor movement
– Need for dense, multi-zone temperature monitoring to detect hotspots, prevent overheating of belts/rollers, and ensure uniform heating processes
– Requirement for reliable digital communication in noisy electromagnetic environments
– Compliance with safety standards in classified areas (potential dust ignition risks in metal processing)
– Complex wiring and high installation/maintenance costs if using traditional single-point transmitters

Why NCS-TT108 Was Selected
The NCS-TT108 was chosen for its proven performance in metallurgy and similar high-reliability applications:
– Multi-Channel Capability: Supports up to 8 temperature sensor inputs (RTD or thermocouple) in one device – ideal for monitoring multiple points along the conveyor length or zones
– Fieldbus Protocols: Supports FOUNDATION Fieldbus (FF) and PROFIBUS PA – enables seamless digital integration into existing DCS/PLC systems common in metallurgical plants (e.g., Siemens, Yokogawa, Honeywell)
– Wide Temperature Range & Accuracy: Handles sensor inputs from -200 °C to +850 °C (depending on probe); accuracy better than Class 0.1; low drift (±50 ppm/°C); precise cold-junction compensation (±1.0 °C) for thermocouples
– Rugged & Certified Design: Ambient temperature rating -40 °C to +85 °C; explosion-proof / intrinsically safe options available; robust housing and protective cabling (orange conduit visible) withstand dust, vibration, and thermal stress
– Cost & Wiring Efficiency: Single device replaces 8 individual transmitters; transmits all data over one fieldbus link – reduces cabling by >30% and simplifies installation/maintenance in large conveyor systems

Application Benefits and Results
– Process Optimization: Real-time multi-zone temperature data helps maintain consistent material heating, prevents belt damage from hotspots, and improves energy efficiency in conveyor drying/sintering processes
– Equipment Protection & Safety: Early detection of abnormal temperatures avoids conveyor breakdowns, roller seizures, or fire risks in high-temperature metal handling
– Reduced Operational Costs: Centralized multi-point measurement and fieldbus communication lower wiring, installation, and long-term maintenance expenses
– Reliable Performance: Proven long-term stability in harsh metallurgical conditions (similar to deployments in lead-zinc smelters and copper projects), with MTBF > 100,000 hours

This installation highlights the NCS-TT108’s effectiveness in metallurgical conveyor and material handling systems, delivering accurate, multi-point temperature monitoring with fieldbus efficiency and industrial-grade ruggedness.
