NCS-TT105 Temperature Transmitter adopts fieldbus technology, is a new generation of fieldbus smart temperature transmitter, and is an indispensable field device in process control. NCS-TT105 smart temperature transmitter supports HART, FF, PA protocol and can be widely used in petroleum, chemical, power plant, metallurgy and other industries.

NCS-TT105 Smart Temperature Transmitter：

1. Support the latest versions of FF H1, PROFIBUS PA and HART protocols

2. Support dual-channel sensor input, support redundancy and hot backup

3. Thermal resistance supports 2-wire, 3-wire and 4-wire

4. The cold end compensation accuracy of thermocouple is ± 1.0℃

5. High precision (better than grade 0.1), low temperature drift  (better than ± 50ppm/℃)

6. Enhanced type: ±0.1℃ (Pt100, Pt1000)

NCS-TT106 uses digital technology, so it can connect with many types of thermocouple and thermo resistive sensors. It has wide range and simple interface between field and control room, which reduces the expense of installation, operation and maintenance.

NCS-TT106 Smart Temperature Transmitter：

1. Support 4 types of thermal resistance and 8 types of thermocouple

2. Thermal resistance supports 2-wire, 3-wire and 4-wire

3. The cold junction compensation accuracy of voltage signal can reach ± 0.15 ℃

4. High precision (better than grade 0.1), low temperature drift  (better than ± 50ppm/℃)

5. Enhanced type: ±0.1℃ (Pt100, Pt1000)

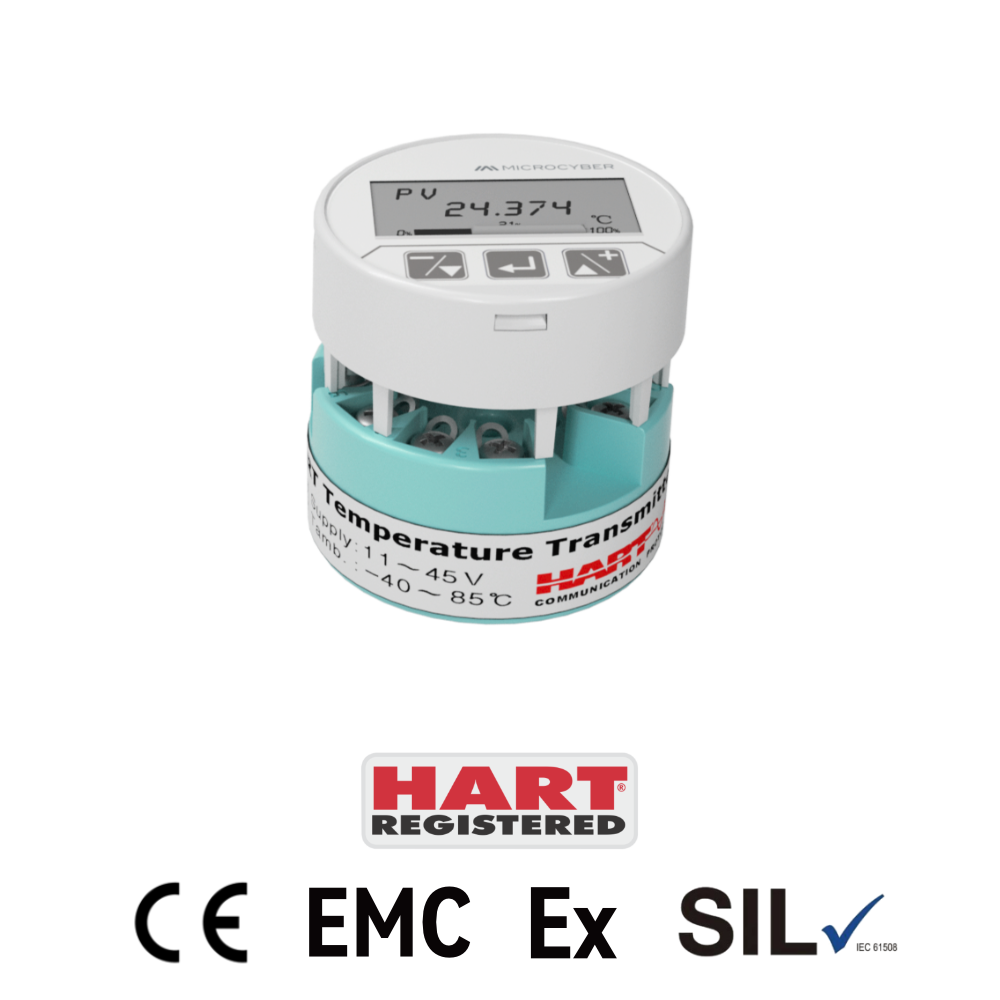

Microcyber NCS-TT106H-R temperature transmitter provides a flexible and reliable temperature measurement solution. As a high-precision smart temperature transmitter, its excellent performance is reflected in signal reliability, long-term stability, high precision and advanced diagnostic functions, which minimizes the risk of use.

NCS-TT106H-R Series Smart Temperature Transmitter:

1. Support two-wire (4~20) mA+HART output

2. Support dual-channel sensor input, support redundancy and hot backup

3. Support 4 kinds of thermal resistance and 8 kinds of thermocouple signals

4. Thermal resistance supports 2, 3, 4 wire wiring

5. The cold junction compensation accuracy of voltage signal can reach ±0.15℃

6. High precision (better than 0.1 level), low temperature drift (better than ±50ppm/℃)

7. Enhanced type: ±0.1℃ (Pt100, Pt1000)

NCS-TT106-R1 fieldbus temperature transmitter, using the fieldbus technology, is a new generation ofsmart fieldbus temperature transmitter and it is an indispensable field device for process control.

NCS-TT106-R1 Smart Temperature Transmitter：

1. Support 4 types of thermal resistance and 8 types of thermocouple

2. Thermal resistance supports 2-wire, 3-wire and 4-wire

3. The cold junction compensation accuracy of voltage signal can reach ±0.15 ℃

4. High precision (better than grade 0.1), low temperature drift (better than ±50ppm/℃)

5. NCS-TT106 FF: FCG interoperability test certification

(ITK 6)

6. NCS-TT106 PA: PNO interoperability test certification

(PA 3.02)

7. NCS-TT106 HART: CE, intrinsically safe, explosion-proof certification

8. Enhanced type: ±0.1℃ (Pt100, Pt1000)

NCS-TT108F/P temperature transmitter supports 8-channel temperature sensor input. It supports FF H1 and PROFIBUS PA protocols. With wide range, it can be applied to a variety of thermal resistance and thermocouple sensors.

NCS-TT108F/P temperature transmitter：

1. Support dual channel 4 types of thermal resistance and 8 types of thermocouple

2. Thermal resistance supports 2-wire and 3-wire

3. The cold junction compensation accuracy of voltage signal can reach ±1.0℃

4. High precision (better than grade 0.1), low temperature drift (better than ±50ppm/℃)

5. NCS-TT108 FF: FCG (FF ITK6) interoperability test, intrinsically safe, explosion-proof certification

6. NCS-TT108 PA: conform to PROFIBUS PA version 3.02
